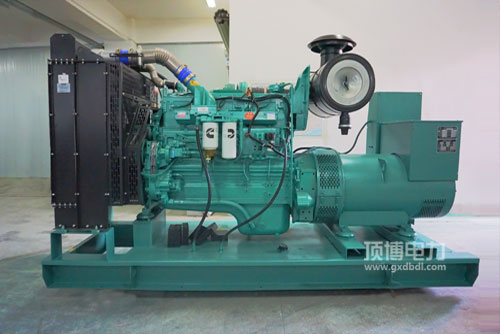

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机汽油经济发展性好: 先进的的汽油管控系統化，独到的STC、ESTC 分级管理管控系統化，独特设计的缸筒壳体烧燃室，低压喷射式汽油，积极做雾化，烧燃积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打着机瞬态使用性能优质: 完满的打着机总布局设汁，配合默契康明斯有趣的EFC设计，掌握精确性强，积极响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打着机升最大功率高: 大体设计方案主体工程.内部结构布设合理的，使用趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50标准要求中国人非通道再次一阶段及亚洲Tier2. Tier 3排出条例标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必须性好， 发起机行驶及运维维保方便快捷，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压范围图 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯来发电用汽车发驱力的优势特点：容积小， 压缩的比较高， 排水槽新鲜空气升温，也容易运行，挪动车载导航电源适配器的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机尺寸	惯用耗油率(kW)Prime Power	预留耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
