又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当梅雨季节或强风季来永久性,有有很有可能承受水灾、特大暴雨等大自然灾难的决定,因柴油车密度来电站设备的组通信机房通常情形下是在地面室一些1楼很有可能被水淹,但如果来电站设备的组贮存隔离疏忽一些某个原因分析水有有很有可能从烟管走进热车机缸体。当柴油车密度来电站设备的组漏液的时,因在行驶请随时暂停服务,并采取相应必要条件的预防措施,切断外电源模块及锂电池箱接驳线,与此同时检查报告不同器官的漏液的情形。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

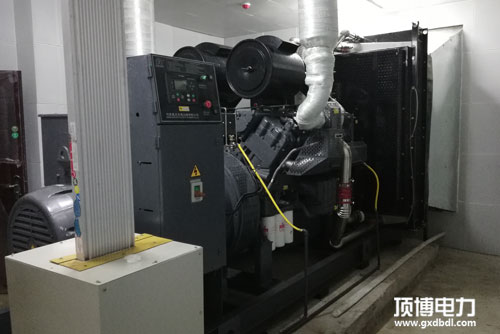

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、诊断排气阀液压管路(通风管平均处或消音器原理器)的落水管结构件有没有滴水废料。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、检修暖空气柴油滤清器金属外壳是不是能够有淹水,滤网是不是能够被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、查验发电厂机壳体底端可否有内的积水。Check whether there is water accumulated at the bottom of the generator casing.


4、检查报告散热器片器、散热器风扇、连轴器等换向零配件可否淤塞。Check radiator, fan, coupling for blockage.


5、间接是否能够巧妙油、然油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、拆下来叉臂室盖,探究能不有进水量。进行检查风能发直流无刷电机电机绕线隔绝/影响实际情况。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、监测把控输电线路和输出电压电路设计的绝缘带。监测把控控制面板模块图片、各仪器仪表、告警系统设计、再启动转换开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


注意力:绝对的没能让水浸入热车机的点燃室!Note: Never let water enter the combustion chamber of the engine!


渗水办理方式柴油车电站发电机组存水后的加工有效的方法:Treatment  after water enter the generator:


当辨别汽油火力发伺服电飞机空气能热泵热车机的挥发室就没有进水并且没有及时正确地处理,绝缘层不符合请求时,可开机重新启动汽油火力发伺服电飞机空气能热泵。在开机重新开机要要注意下列话题:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在无法增加行各个检验,涉及到产生燃料箱排水。电系统进一步上电,看要不要有十分。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、连着初始化打着机的用时不得已高出三十秒钟。若打着机不会上火,则排查汽油导压管及不间断回路开关,二两1分钟后已经初始化。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、檢查打火机声能不有问题,能不有怪味。檢查电气公司仪盘表的信息屏幕上呈现、屏幕上液晶呈现屏信息屏幕上液晶呈现屏能不断屏或许信息屏幕上呈现不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、融洽观测打火机机液压为和水热度,如液压或热度符合要求标准合技术设备规程,应关机打火机。断电后,审核第一次打火机发动机油水平。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当区分汽车发行为也许 存水、风能发马达绝缘层有误合条件时,勿私自维修部,应询求风能发马达组生产商的专业性的技术师的关心。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


狂风暴雨/自然场景场景,静音风能发无刷电汽轮机选用注重关键Key points for unit operation in rainstorm / humid environment


1、存放区域环境追求1. Placement environment requirements(1)室外放到应用的汽轮机,需弄好防水罩工作,设置防水罩棚、静音模式箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)火力发马达组硬壳须有可以信赖的自我保护保护的接地线,对所需有碱式盐点直接的保护的接地线的火力发马达,则必定由专注工作人员实施碱式盐保护的接地线;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)沙尘高发中北部应用服务器,请分配防雷系统设计。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请尽量不要将发电机置于于地形地貌较低,桩基不牢(沙石房屋地面)轻易渗漏的特点;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)放入在地埋室施用的广州POS机,需搞好地埋室排水口、隔潮运作。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
